Version: 5.3.0.0

messageunion

Description​

This feature combines to messages to a newly created message. The combination works as follows: A new message with a newly root object is created. The provided messages are added as child elements to the newly created root of the message.

Create​

See creation of Scriptlet.

Configuration​

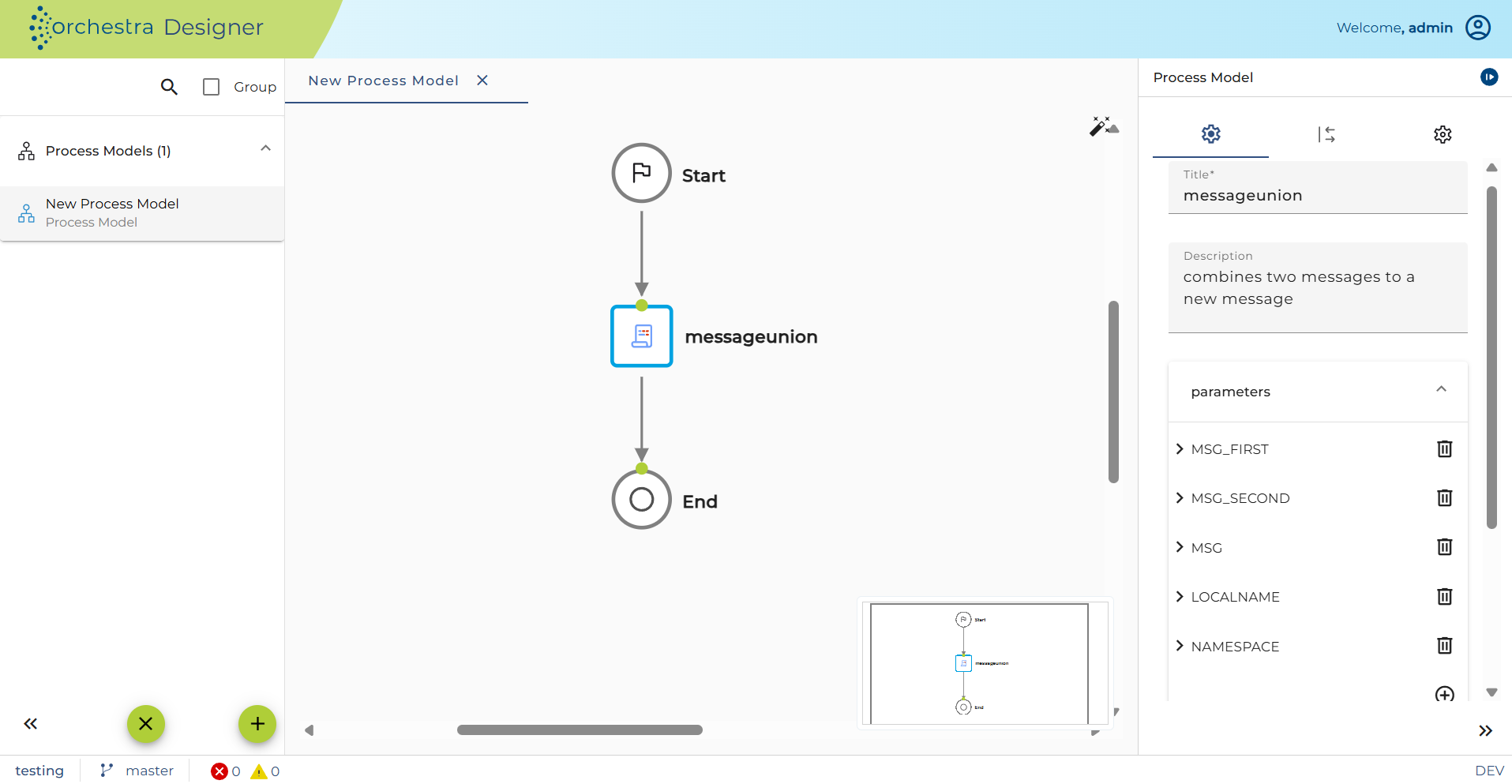

Properties and Parameter assignment​

The assignment sections define the assignment of variables between the script and the process model.

The following parameters are available:

**Ingoing parameters**:

    - **MSG_FIRST**: First message that is added as a child to the combined message.
    - **MSG_SECOND**: Second message that is added as a child to the combined message.
    - **LOCALNAME**: Local name of the root element.
    - **NAMESPACE**: Namespace of the root element.

**Outgoing parameters**:

    - **MSG**: Resulting message from the process.
