LLM Outbound Adapter

Description

This channel implements an LLM Adapter that can be used to send requests to Large Language Model (LLM) providers and receive AI-generated responses. The channel supports multiple providers such as OpenAI, Anthropic, Mistral, Gemini, Azure, and Ollama.

The channel allows you to configure a primary LLM configuration and an optional fallback configuration. If the primary provider fails, the fallback configuration can be used automatically.

info

This adapter requires a valid Advanced AI product license. Contact licensing@soffico.de to request or upgrade your license.

Configuration

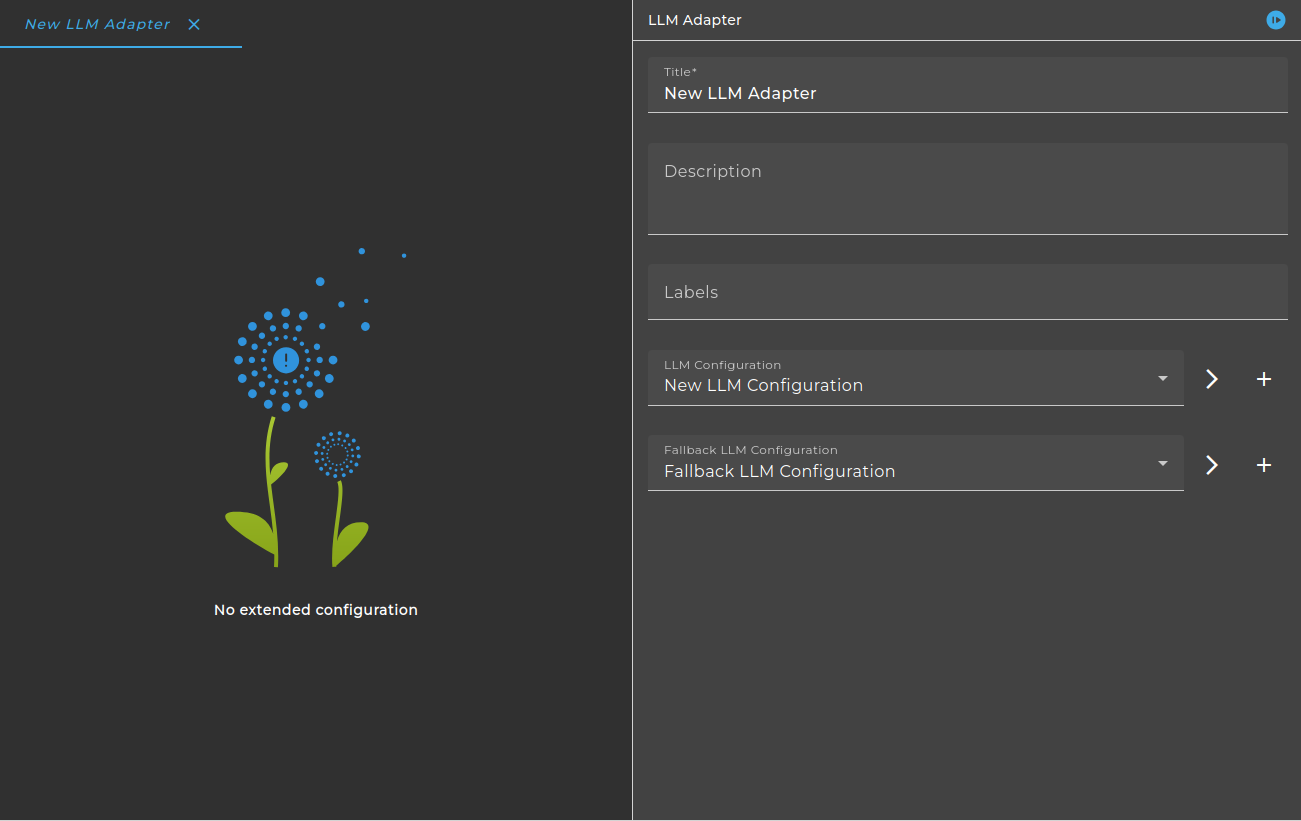

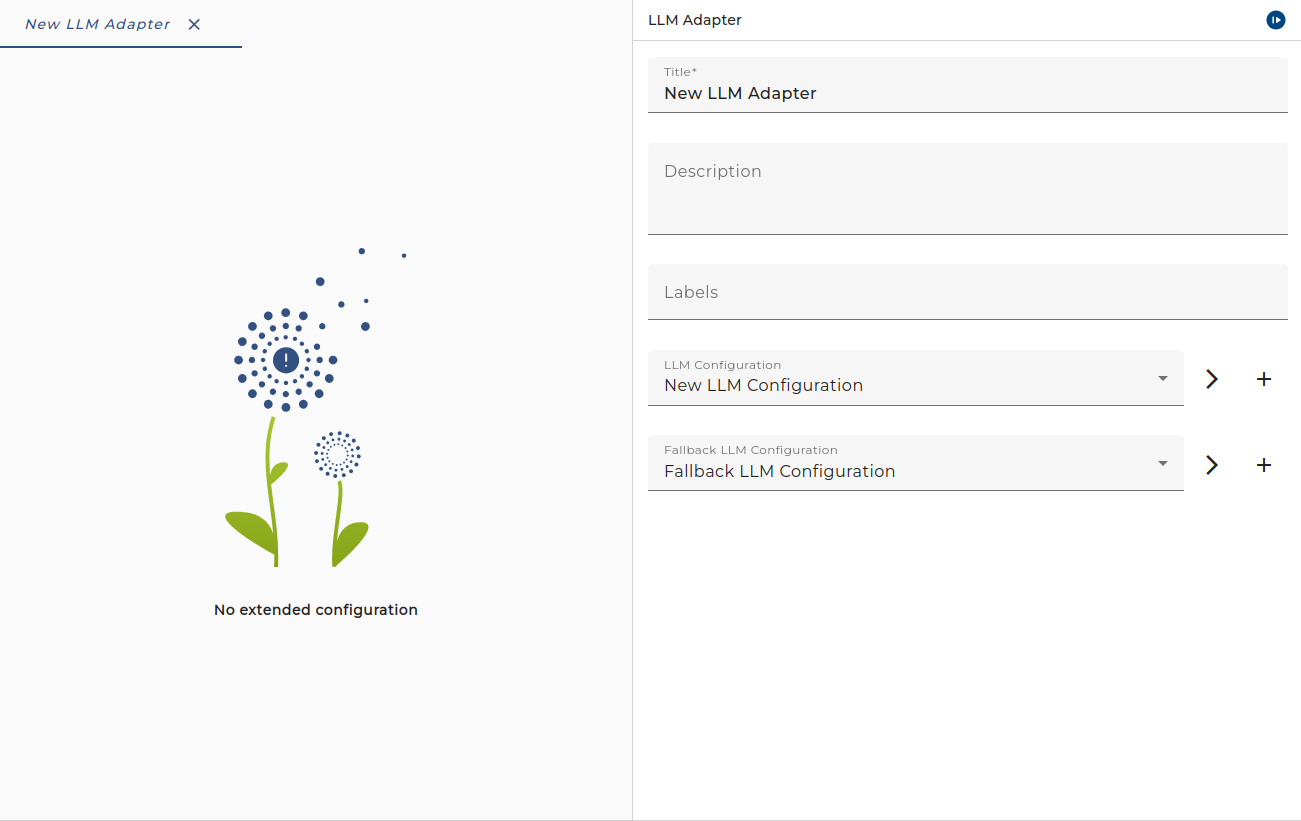

The dialog to configure the LLM Outbound Adapter looks like:

Purpose of object

Use this channel to invoke LLM providers from your process model. Configure it with one or two LLM Configuration environment entries that define the provider, model, and generation parameters.

Creation

To create an LLM Outbound channel, follow the steps described in the general description of Scenario Elements.

Configuration

The dialog to configure the LLM Outbound channel looks like this:

Setting	Description
LLM Configuration	Select or create an LLM Configuration environment entry. This defines the primary provider (e.g. OpenAI, Anthropic, Ollama), model, API credentials, and generation parameters.
Fallback LLM Configuration	Optional. Select an alternative LLM Configuration to use when the primary configuration fails or is unavailable.

Parameters

When calling the channel from the process model, you provide input parameters and receive output parameters. The following parameters are available:

Parameter Name	Direction	Type	Required	Description
USER_MESSAGE	Ingoing	String	Yes	The user message to send to the LLM. This is the main prompt content.
MSG	Ingoing	Message	No	A message to be sent to the LLM. Use this when the prompt content comes from a message (e.g. serialized or transformed).
SYSTEM_PROMPT	Ingoing	String	No	System prompt to control the LLM behaviour. Overrides the default system prompt configured in the LLM Configuration.
ATTACHMENTS	Ingoing	MessageList	No	Attachments to be sent to the LLM (e.g. images, documents for multimodal models).
RESPONSE_SCHEMA	Ingoing	String	No	Optional JSON Schema for the LLM response. Use when the LLM Configuration has Response Format set to JSON to enforce a specific output structure.
MSG	Outgoing	Message	—	The response of the LLM. Check next chapter for the output message structure.

Response Message Structure

The outgoing MSG parameter is a message with the following structure:

Element	Type	Description
responseText	String	The generated text response from the LLM.
responseModel	String	The model identifier that was used to generate the response.
inputTokens	String	The number of tokens in the input (prompt).
outputTokens	String	The number of tokens in the generated output.
finishReason	String	The reason the model stopped generating (e.g. stop, length, content_filter).
