Beckhoff ADS Writer

Description​

Beckhoff ADS Writer is used for writing variable values in Beckhoff TwinCAT using ADS protocol.

note

For using Beckhoff ADS channels you need to put the AdsToJava-3.dll in a folder and start the Orchestra applications with this argument -Djava.library.path=<Path to the DLL folder> .

Creation​

To create a Beckhoff ADS Writer, follow the steps described in the general description of Scenario Elements.

Configuration​

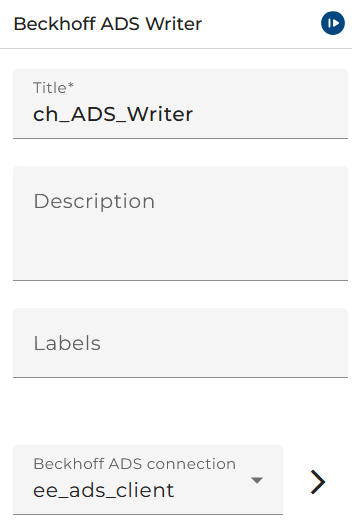

The dialog to configure the Beckhoff ADS Writer looks like:

Base view of the Beckhoff ADS Listener

Beckhoff ADS Connection is the only property you need to configure the Beckhoff ADS Writer.

Input Message​

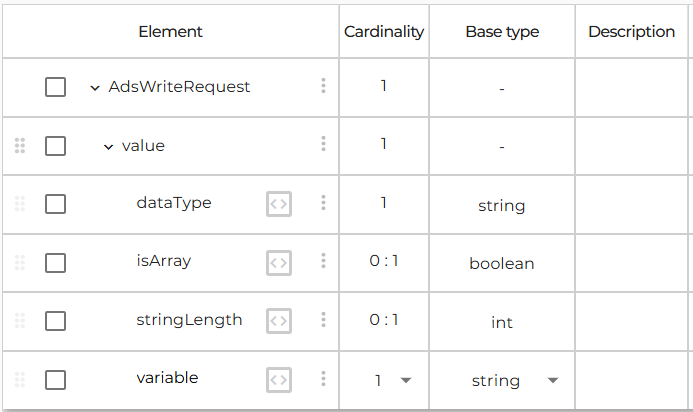

The channel expects following message type to write a value to a variable in TwinCAT.

Message type for Beckhoff ADS Writer
  • value that should be written
  • variable: <class name>.<variable name> as attribute of the value
  • dataType: data type of the variable as attribute of the value. As data type name, all type names found in the TwinCAT can be used here.
  • isArray is an optional attribute. Has to be true if the user wants to write a value to an array variable.
  • stringLength is the length of the string defined in TwinCAT. Is only needed if isArray is true and dataType is STRING.

Example

<?xml version="1.0" encoding="ISO-8859-1" standalone="no"?>
<AdsWriteRequest>
	<value variable="MAIN.stringVar" dataType="STRING">Hello World!</value>
</AdsWriteRequest>

Example for writing array value

<?xml version="1.0" encoding="ISO-8859-1" standalone="no"?>
<AdsWriteRequest>
	<value variable="MAIN.myStringArray" dataType="STRING" isArray="true" stringLength="20">
		<index>Test</index>
		<index>Hello</index>
		<index>World</index>
	</value>
</AdsWriteRequest>
