Server

Helpful information about the server on which Orchestra is running is provided here.

The System info function allows users to download documentation of the server, specifically for the selected node in a distributed system.

In support cases, all necessary data can be conveniently retrieved this way and passed on to the Orchestra support team.

The archive includes system information such as copies of the Orchestra configuration and log files. If the Tomcat logging path is set in the environment entries (log.tomcat.path), this directory can be automatically included in the archive.

Module Info

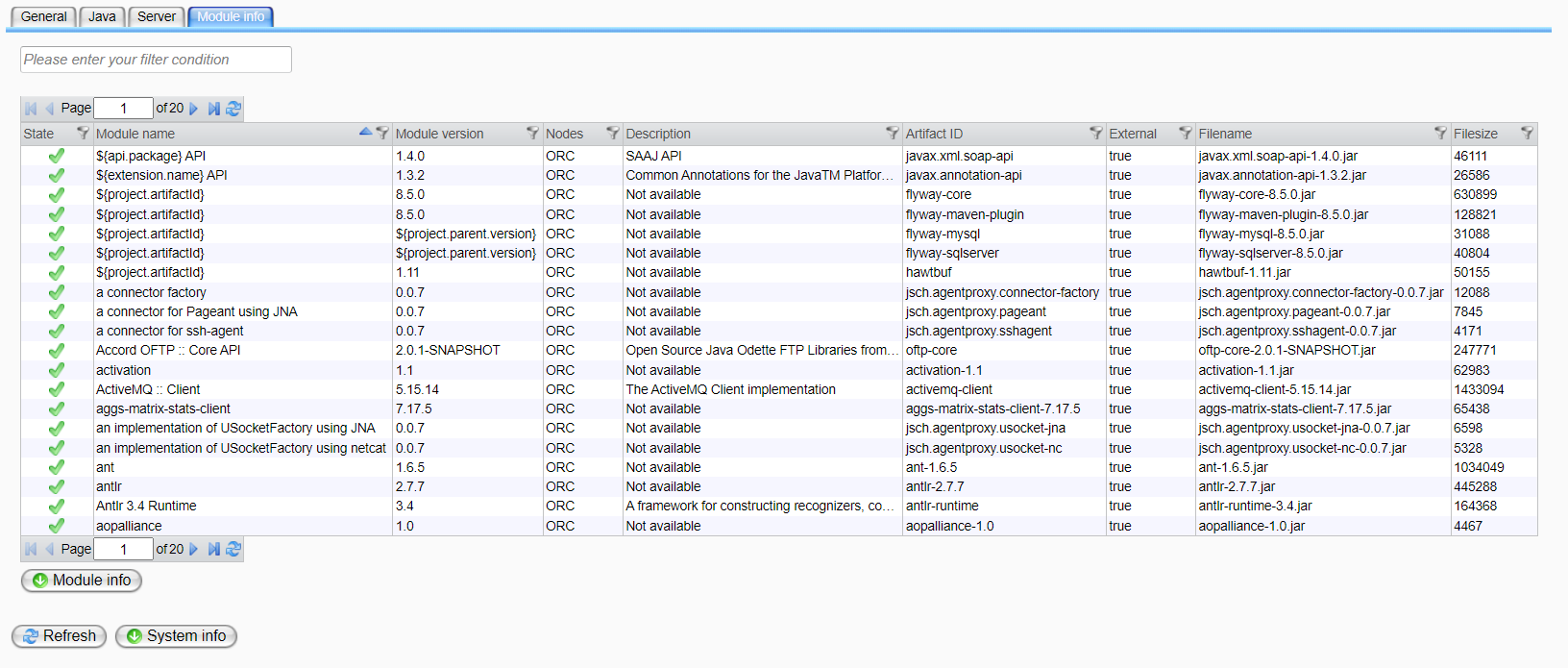

The Module Info tab displays an overview of the modules in Orchestra. This information is accessible to users with the Serverinfo.Details or QueryModuleInfo role:

Column Descriptions

• State: Indicator for the validation result of the module.
• Module Name: Name of the module defined in the Maven POM file.
• Module Version: Version defined in the Maven POM file.
• Nodes: List of nodes that own the module.
• Description: Description defined in the Maven POM file.
• Artifact ID: Artifact ID defined in the Maven POM file.
• External: Indicates if the module is external. Displays true if it is an external module, false if it is implemented by Soffico.
• Filename: Filename of the module.
• Filesize: Size of the module file.

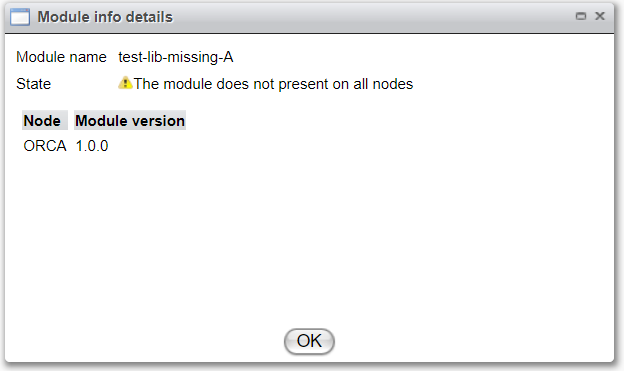

To check for more details when the state is WARNING, double-click the module to open a detail dialog:

If cluster mode is active, the node selection is displayed:

Select the nodes that interest you to compare module information.

The modules overview can be downloaded in XML format using the Module Info button located below the table.
