Create cell connection manually

To generate a cell connection, press the Add button located below the connection overview table. A wizard dialog will open to assist you in creating a cell connection.

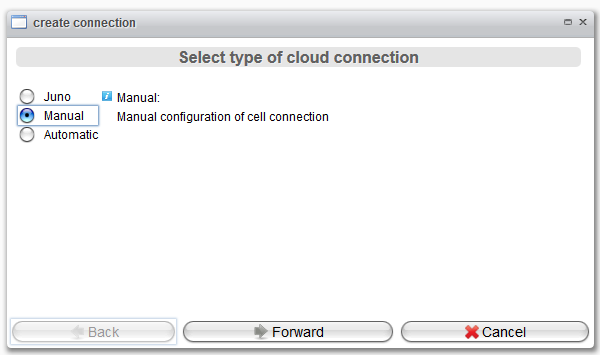

Please select "Manual" to manually create a cell connection between two trusted Orchestra servers.

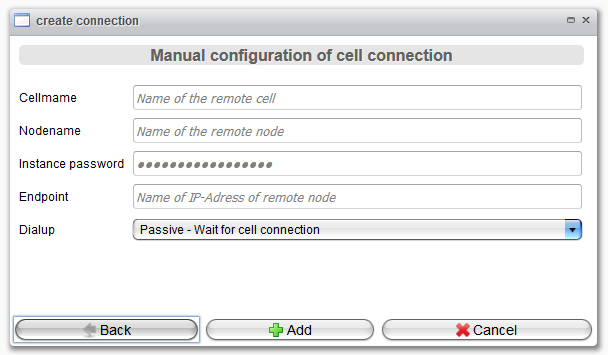

After clicking Forward, the next wizard page will appear, presenting the settings required for manual configuration.

Attribute	Description
Cellname	The name of the remote cell.
Nodename	The node name of the remote node.
Instance password	The password used when connecting to the remote node.
Endpoint	Hostname or IP address of the remote node.
Dialup	Defines which cell is responsible for initiating the connection procedure.
	Passive - Wait for cell connection: If selected, the local node will wait for incoming connections from the other cell nodes.
	Active - Connect to other node: If selected, the local node will be responsible for initiating a connection to the remote cell.

Finally, click the Add button to save the connection.
