MCP Server

Configuration

:::warning Requirements

Node version 20.19 or higher is required to integrate the MCP server.

Npx version 11.6 or higher is required to use the mcp-remote wrapper.

:::

We have integrated an MCP server that allows access to selected functions of the Orchestra Monitor. In addition, we have integrated another MCP server that enables the use of exposed scenarios through AI.

These tools can then be accessed in the MCP client through the following setting:

{
  "servers": {
    "orchestra_monitor": {
      "transport": "streamable-http",
      "url": "<http/https>://<host>:<port>/monitor/mcp"       //monitor endpoint
    },
    "orchestra_scenarios": {
      "transport": "streamable-http",
      "url": "<http/https>://<host>:<port>/scenarios/mcp"     //scenario endpoint
    }
  }
}

In cases where the MCP client does not support streamable HTTP or OAuth authentication, you can use the following wrapper.

{
  "servers": {
    "orchestra_monitor-remote": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "<http/https>://<host>:<port>/monitor/mcp",
        "--allow-http"                              //only for http
      ],
      "env": {
        "NODE_TLS_REJECT_UNAUTHORIZED": "0"         //only for https
      }
    }
  }
}

info

When authentication is enabled, you can run the mcp-remote command once separately. The token will then be cached locally, allowing the client to authenticate automatically afterwards.

npx -y mcp-remote http://localhost:8019/monitor/mcp --allow-http

For https:

NODE_TLS_REJECT_UNAUTHORIZED=0 npx -y mcp-remote https://localhost:8443/monitor/mcp

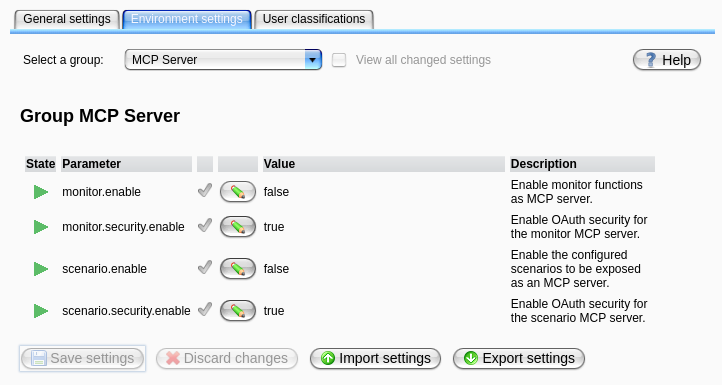

To enable the MCP server, see the MCP environment settings for configuration details.

Authentication

To enable authentication with the MCP server, the following settings must be configured:

• The MCP environment setting monitor.security.enable must be set to true.
• The OAuth settings must be adjusted:
  • oauth.authorization.server must be set.
  • oauth.certificateEndpoint must be set.

info

The OAuth provider must support dynamic client registration and have it enabled in order for the OAuth flow to work properly.

Primitives

In the context of MCP (Model Context Protocol), primitives are the fundamental building blocks or low-level operations that define basic capabilities and data types used by MCP servers and clients to communicate and perform higher-level tasks.

The following primitives are available.

Resources

Resources are data objects or services that can be accessed and used by other components or systems.

Name	Description	Needs authentication
Runtime Version	The current runtime version of orchestra	no

Tools

Tools are executable actions or operations that can be invoked by a client through the MCP protocol to perform specific tasks or trigger functionality on the server.

Name	Description	Needs authentication
runtime_list_scenarios	Get all scenarios on the runtime.	no
runtime_scenario_info	Get information about a scenario on the runtime.	no
runtime_start_scenario	Start a deployed scenario on the runtime.	yes
runtime_stop_scenario	Stop a deployed scenario on the runtime.	yes
runtime_logging_info	Get the last logging information of logging groups.	yes
runtime_get_system_events	Returns all System events of the orchestra runtime.	no
runtime_vulnerability_check	Check if there are any possible vulnerabilities on the runtime.	no
runtime_scenario_process_monitor_info_list	Get all process information about all scenarios on the runtime.	yes
runtime_scenario_process_monitor_info	Get process information about a scenario on the runtime.	yes
runtime_process_model_token_info	Get process information about a process model process on the runtime.	yes

info

Only the primitives that can be used without authentication are exposed when authentication is disabled.
